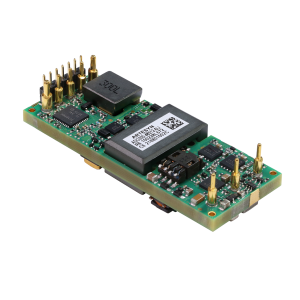

ADC100M Series
100 A & 120 A PSA Main DC-DC Converter
Advanced Energy’s Artesyn ADC100M-04 is a Direct Conversion PSA main unit. With the ever increasing power demands of server processors and associated memory devices, new power conversion design approaches need to be considered both at system and server level. The solution to achieve the high power required is to move to a 48 V system with the power conversion design approaches of either distributed power conversion, or direct power conversion employed in the server. ADC100 series follow Power Stamp Alliance’s standard product footprint and functions that provide a standard modular board-mounted solution for power conversion for 48 Vin / 54 Vin to low voltage, high current applications.

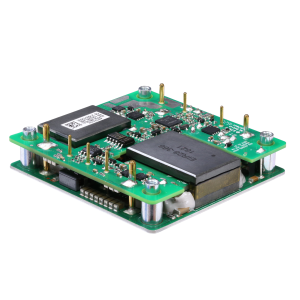

ADH1300 Series
1300 W Half-Brick DC-DC Converter
The ADH1300 series half-brick isolated DC-DC converter provides a single regulated 28 V/46.5 A low-noise 1300 W output with > 95% efficiency at half load. With an input range of 36 to 75 VDC, the series is designed primarily for standard 48 V telecom equipment, such as remote radio head (RRH) applications. A fixed 300 kHz switching frequency minimizes external EMI filtering requirements. An open-frame design with an aluminum thermal baseplate is optimized for conduction or forced air cooling. You can operate the ADH1300 converters over -40 to +85˚C ambient and with full power delivery up to a baseplate temperature of 100˚C. The unit follows the standard 1/2 brick dimensions of 2.3" (57.9 mm) * 2.4" (61 mm) and an installed height of just 0.5" (12.7 mm).

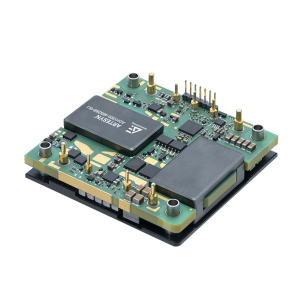

ADH700 Series
700 W 1/2 Brick
The ADH700 series half-brick isolated DC-DC converter provides a single regulated 28 V/25 A or 50 V/14 A low-noise 700 W output with >95% efficiency at half load. With an input range of 36 to 75 VDC, the series is designed primarily for standard 48 V telecom equipment, such as remote radio head (RRH) applications. A fixed 280 kHz switching frequency minimizes external EMI filtering requirements. An open-frame design with an aluminum thermal baseplate is optimized for conduction or forced air cooling. You can operate the ADH700 converters over -40 to +85˚C ambient and with full power delivery up to a baseplate temperature of 100˚C. Helping you meet demanding inter-board spacing requirements, the converters feature an installed height of just 0.5 inch (12.7 mm).
