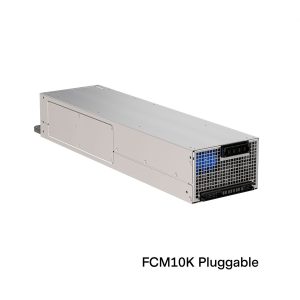

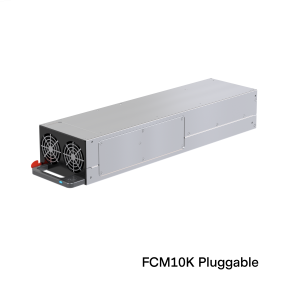

FCM10K
Evergreen™ Vento™
The 36 W/in3 power density of Evergreen Vento standalone and pluggable modules provides more power in less space, and > 96% efficiency with 0.98 power factor correction reduces utility costs and minimizes heat. These modules are high performing in an array of industrial, medical, semiconductor, supercomputer, and defense applications.

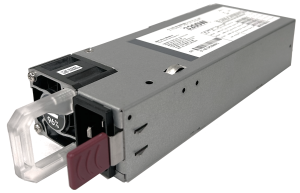

CSU3200
3200 W M-CRPS-Type Titanium Power Supply
The 3.2 kW CSU3200AT-3-xMx Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 262.3 A. The PSU features an input range of 90-127 Vac, 180 to 264 Vac, and 180 to 264 VDC. The main output range is 11.4 to 12.8 VDC that can feed downstream DC-DC converters in distributed power architectures (DPA). Housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185 mm), the supply’s short, narrow form factor conforms to the Modular Common Redundant Power Supply (M-CRPS) standard and frees up system space. Active current sharing allows paralleling without additional components.

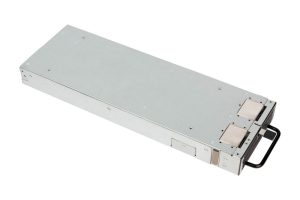

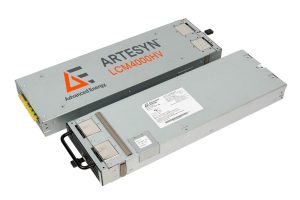

LCM4000
4000 W Bulk Front End Centralized Power For LED Horticulture
Advanced Energy’s Artesyn LCM4000HV series and associated LCM12K mounting shelf has been designed specifically to provide a centralized current source for medium to large scale LED lighting and horticulture applications. The unique input design allows all standard AC inputs 208 VAC to 600 VAC from single to 3 phase sources. The output of each 4 kW block provides flicker free current source from 0 to 16 A at an output voltage range between 100 VDC to 300 VDC. High nominal operating voltage provides the benefits of lower cost standard wiring and higher efficiency with minimal voltage drop over long distance. The 19” 1U rack mount shelf is designed for hot plug replacement of the 4 kW modules, providing high reliability and simple maintenance.
