FCM10K
Evergreen™ Vento™

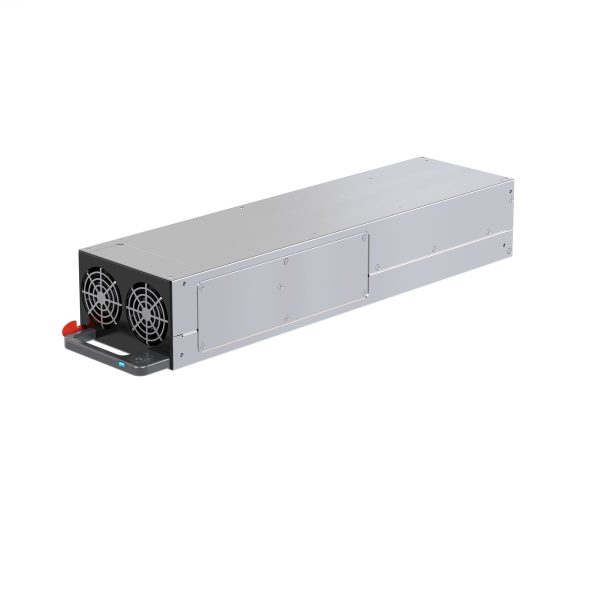

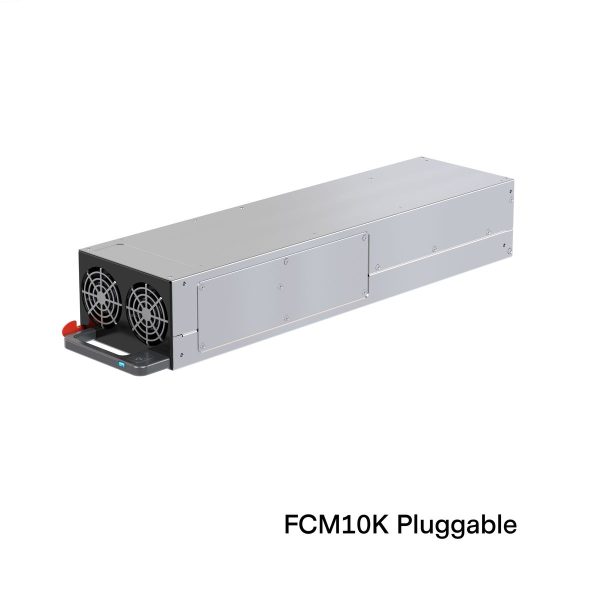

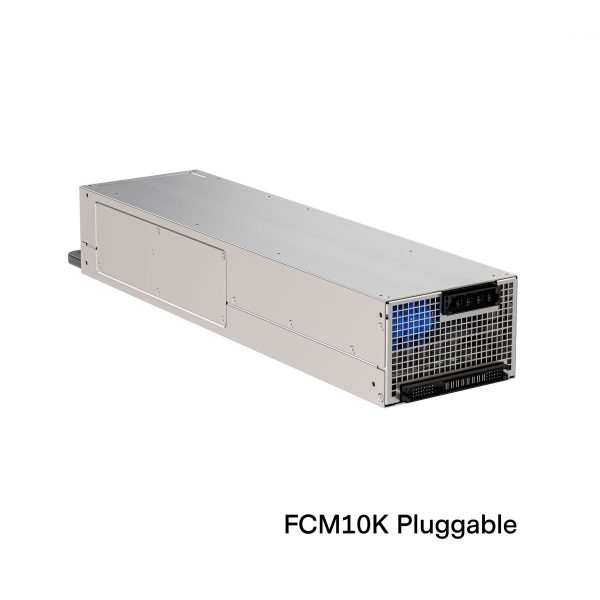

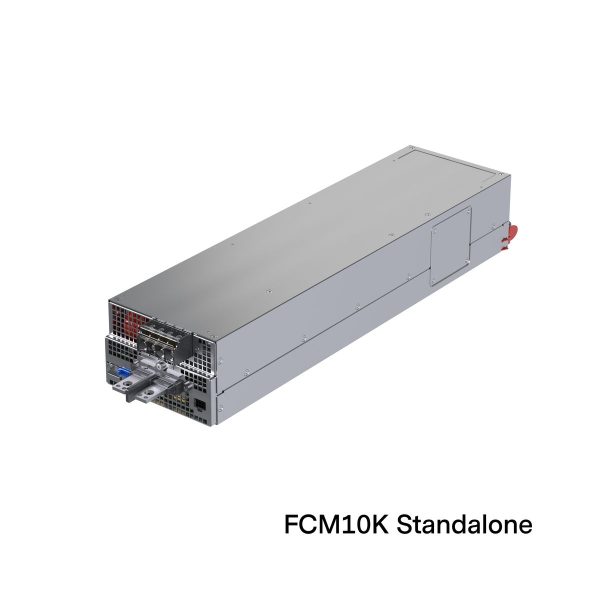

The 36 W/in3 power density of Evergreen Vento standalone and pluggable modules provides more power in less space, and > 96% efficiency with 0.98 power factor correction reduces utility costs and minimizes heat. These modules are high performing in an array of industrial, medical, semiconductor, supercomputer, and defense applications.
- Specifications
- DATASHEET
Specifications
Features
| Features | Benefits |
|---|---|
| Instant customization | Fast delivery of tailored solutions? |
| Modularity | Quick power scaling |
| 36?W/in3? | More power in less space |
| > 96% efficiency | Reduced utility costs |
Specifications
| Specifications | |
|---|---|
| Output Power (W): | 0 to 10000 |
| Length (Inches): | 18.11 |
| Width (Inches): | 4.95 |
| Height (Inches): | 3.2 |
| Mounting Type: | Shelf |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 183.5 |
| Output Voltage Range (V): | 48 to 60 V |
| Minimum Output Power (W): | 0 |
| Maximum Output Power (W): | 10000 |
| Minimum Input Voltage (V): | 180 |
| Maximum Input Voltage (V): | 528 |
| Warranty (Years): | 5 |
Stock Check
| Part Number | Efficiency (%) | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) |
|---|---|---|---|---|---|
| FCM10KW-N-P | 95.5 | 48 | 60 | 183 | 54.5 |
| FCM10KW-N-T | 95.5 | 48 | 60 | 183 | 54.5 |
Technical Documentation
- Product Information Documents
- FCM 10k Data Sheet
- Insights & Studies
- High-Density, High-Efficiency, Scalable Power for Advanced Burn-In Systems
- Miscellaneous
- FCM10K TRN
FCM10K Technical Reference Note
- FCM10K TRN
