CSU3200

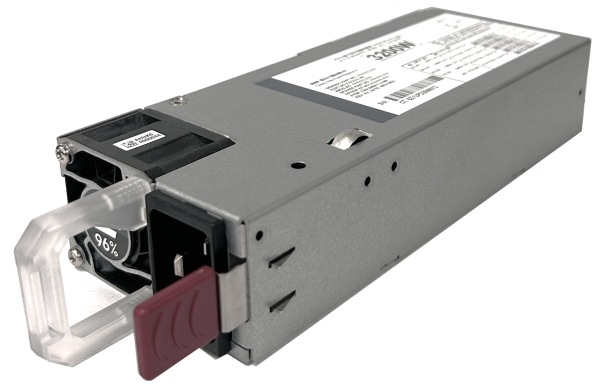

3200 W M-CRPS-Type Titanium Power Supply
The 3.2 kW CSU3200AT-3-xMx Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 262.3 A. The PSU features an input range of 90-127 Vac, 180 to 264 Vac, and 180 to 264 VDC. The main output range is 11.4 to 12.8 VDC that can feed downstream DC-DC converters in distributed power architectures (DPA). Housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185 mm), the supply’s short, narrow form factor conforms to the Modular Common Redundant Power Supply (M-CRPS) standard and frees up system space. Active current sharing allows paralleling without additional components.
- Specifications
- DATASHEET
Specifications
Features
| Features | Benefits |
|---|---|
| Input Range at low line, high line, and high voltage DC | Input voltage flexibility?for world-wide deployment |
| Input Frequency 47 - 63 Hz | Reduces electricity bill due to high efficiency and high power factor performance |
| Hold-up Time 11 ms | Small form factor saves space for system core functions |
| Power Factor >0.98 at 50% load | PMBus support provided reporting, monitoring, and control functions for sysytem power management |
| Main Output Voltage 12.2V at 262.3A | Field upgradeable feature reduces mean time to repair and system down time |
| Standby Output Voltage 12.0V at 3.5A | Secure FW |
| Redundant mode operation | |
| Field upgradable firmware | |
| Load Sharing Active load sharing for parallel function | |
| PMBus monitoring and reporting | |
| FW security |
Specifications
| Specifications | |
|---|---|
| Output Power (W): | 3200 |
| Length (Inches): | 7.28 |
| Width (Inches): | 2.89 |
| Height (Inches): | 1.51 |
| Mounting Type: | Hotpluggable |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 262.3 |
| Output Voltage Range (V): | 12.2 |
| Minimum Output Power (W): | 0 |
| Maximum Output Power (W): | 3200 |
| Minimum Input Voltage (V): | 90 |
| Maximum Input Voltage (V): | 264 |
| Warranty (Years): | 2 |
Stock Check
| Part Number | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs |
|---|---|---|---|---|---|
| CSU3200AT-3-3M0 | 90 | 264 | 262.3 | 12.2 | 2 |
Technical Documentation
- Product Information Documents
- Artesyn M-CRPS CSU32000AT Series Data Sheet
Download CSU32000AT Datasheet for details regarding product specifications, electrical specifications, mechanical specifications and more. Discover how AE’s CSU32000AT flexible power conversion solution meets your needs.
- Artesyn M-CRPS CSU32000AT Series Data Sheet
DATASHEET
