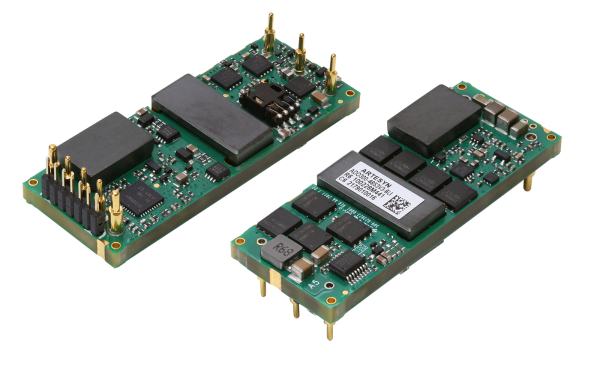

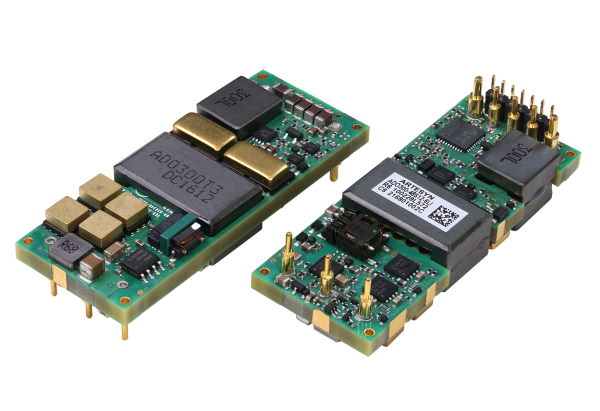

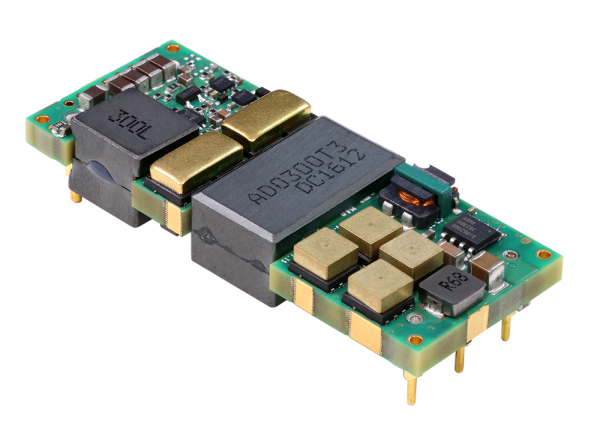

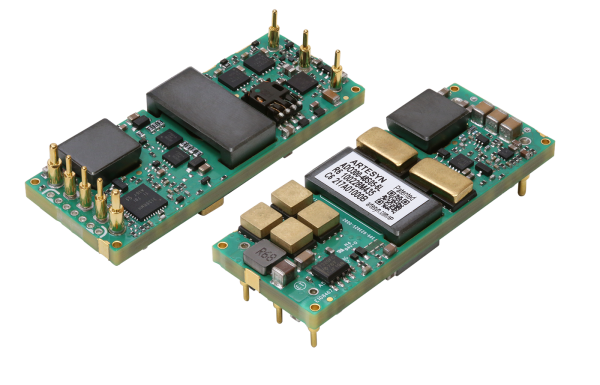

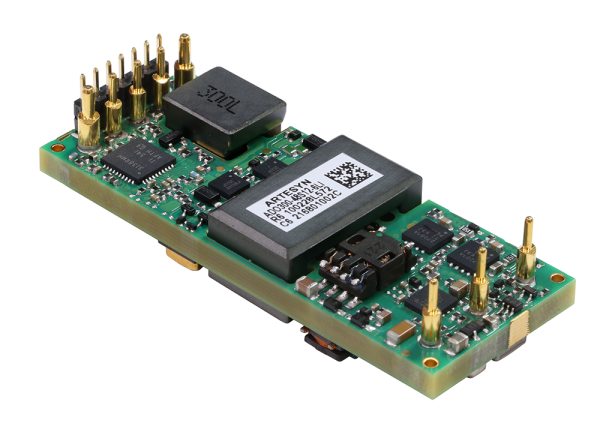

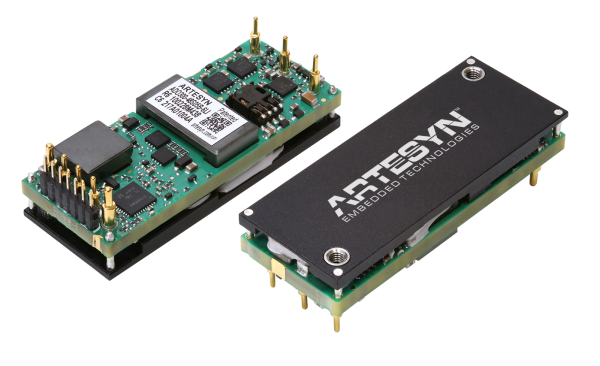

Specifications
Features
| Features | Benefits |
| 300 W continuous power | Baseplate version for contact cooling or heatsink mounting |
| 36 75 Vdc Telecom input range | Excellent thermal performance |
| RoHS 6 compliant | Fixed switching frequency |
| UL94 V0 materials | Fully regulated output voltage |
| Ultra high efficiency 95% @ 60% load | High capacitive load capability |
| Input voltage 36V - 75Vdc | High reliability |
| Output voltage 12 Volts | Low ripple and noise |
| Output current 26 Amps | No minimum load requirement |
| Output voltage 3.3 Volts | Parallel and Droop current sharing |
| Output current 60 Amps | Prebias startup capability |
| Output voltage 5 Volts | Remote control function |
| Output current 60 Amps | Remote output sense |
| Isolation 1500Vdc | Two year warranty (consult factory for extended terms) |
| Mechanical footprint - analogue standard 8-pin 1/8 brick DOSA compatible | logic control - analogue Positive or Negative enable |
| mechanical outline standard 1/4 brick | logic control - digital PMBus compatible interface |
| insulation Basic insulation |
| Mechanical footprint - digital PMBus interface DOSA compatible |
| Mechanical Open frame or baseplate construction |
Specifications
| Specifications | |
| Output Power (W): | 300 |
| Length (Inches): | 2.3 |
| Width (Inches): | 0.9 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 60 |
| Output Voltage Range (V): | 3.3V to 12V |
| Minimum Output Power (W): | 300 |
| Maximum Output Power (W): | 300 |
| Minimum Input Voltage (V): | 36 |
| Maximum Input Voltage (V): | 75 |
| Warranty (Years): | 2 |
| Part Number | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs |
| ADO300-48S05-6L | 5 | 5 | 60 | 5 | 1 |
| ADO300-48S05-6LI | 5 | 5 | 60 | 5 | 1 |
| ADO300-48S05B-6L | 5 | 5 | 60 | 5 | 1 |
| ADO300-48S05B-6LI | 5 | 5 | 60 | 5 | 1 |
| ADO300-48S05PB-6L | 5 | 5 | 60 | 5 | 1 |
| ADO300-48S12-6L | 12 | 12 | 26 | 12 | 1 |
| ADO300-48S12-6LI | 12 | 12 | 26 | 12 | 1 |
| ADO300-48S12B-6L | 12 | 12 | 26 | 12 | 1 |
| ADO300-48S12B-6LI | 12 | 12 | 26 | 12 | 1 |
| ADO300-48S3V3-6L | 3.3 | 3.3 | 60 | 3.3 | 1 |
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
