PRODUCT

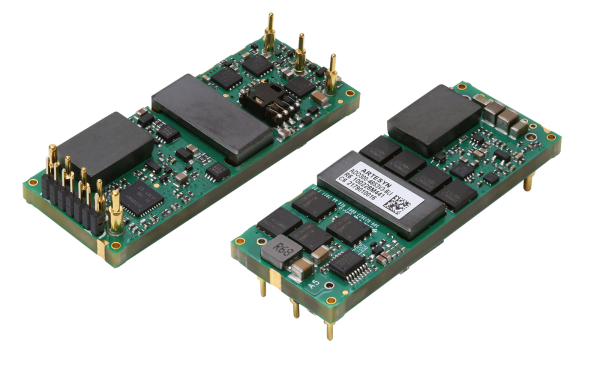

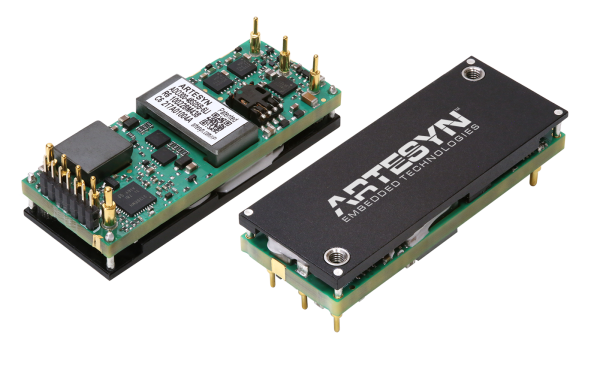

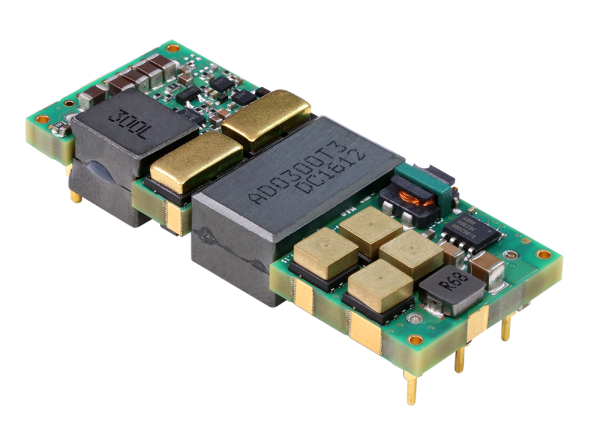

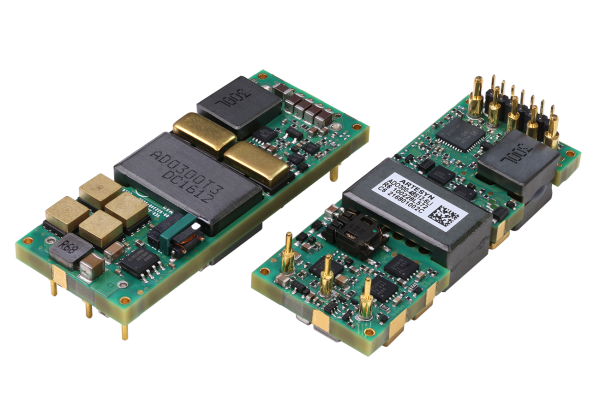

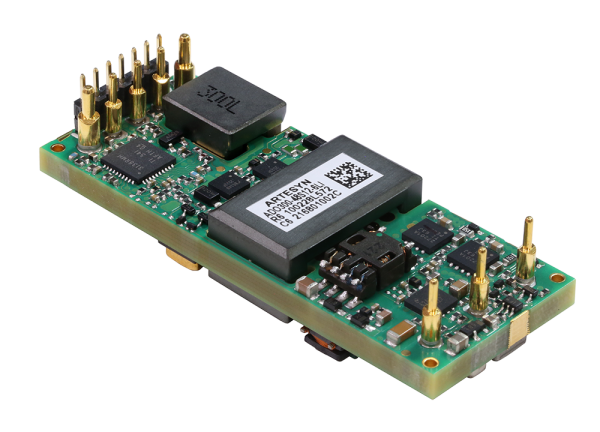

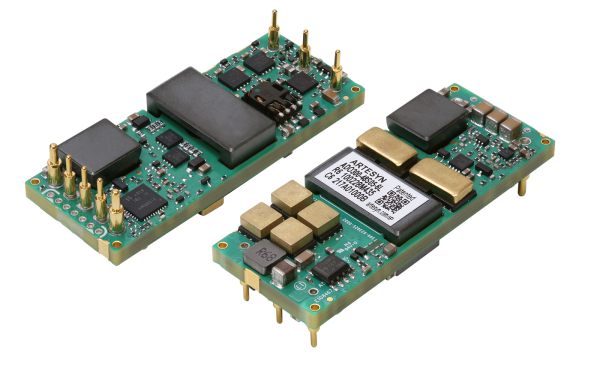

ADO300 series 系列產品，詳細規格請參閱下方規格表與原廠型錄，或與我們聯繫取得完整技術資料。
| Output Power (W) | 300 |
|---|---|
| Length (Inches) | 2.3 |
| Width (Inches) | 0.9 |
| Height (Inches) | 0.4 |
| Mounting Type | BMP; Through Hole |
| Maximum Output Current (A) | 60 |
| Output Voltage Range (V) | 3.3V to 12V |
| Minimum Input Voltage (V) | 36 |
| Maximum Input Voltage (V) | 75 |
| Warranty (Years) | 2 |
| Efficiency | Ultra high efficiency 95% @ 60% load |
| Isolation | 1500Vdc |
| Mechanical footprint | analogue standard 8-pin 1/8 brick DOSA |
| Input range | 36-75 Vdc Telecom input range |
| Compliance | RoHS 6, UL94 V0 materials |
| Output options | 3.3V/60A, 5V/60A, 12V/26A |
