Artesyn 新品

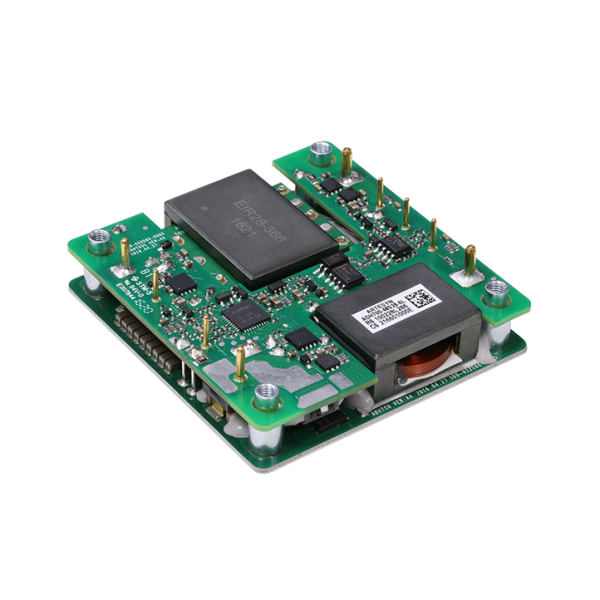

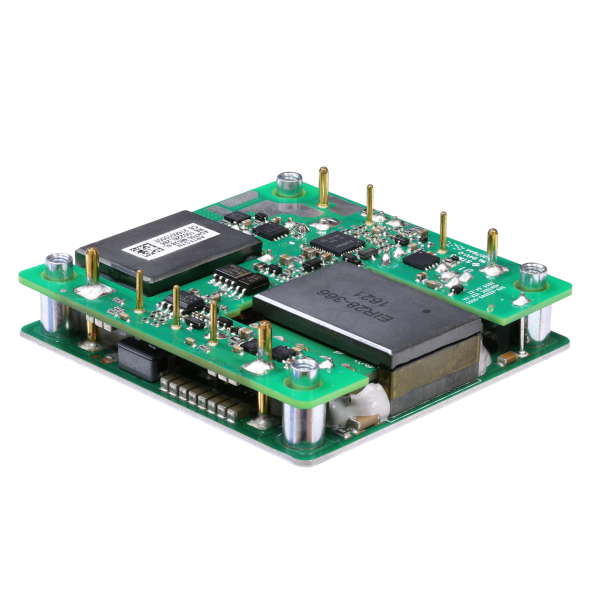

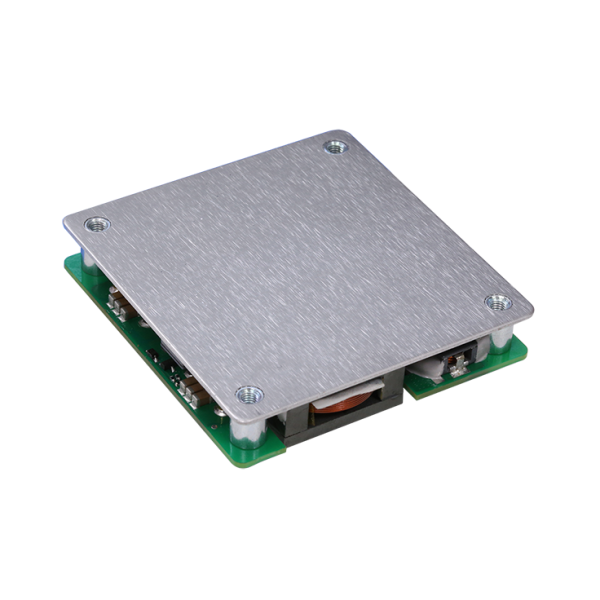

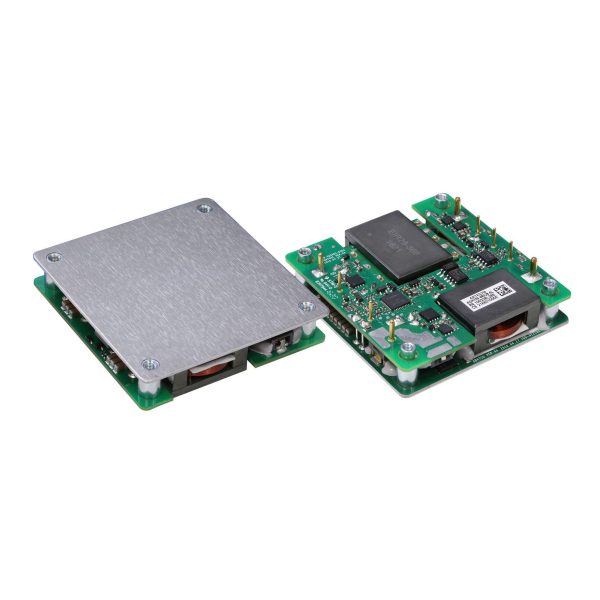

ADH700 Series

700 瓦 1/2 磚隔離式 DC-DC 轉換器提供單一穩壓 28 V/25 A 或 50 V/14 A 低雜訊 700 W 輸出，在半負載時效率為 >95%

Input Voltage Range	36-75 VDC
Output Power	700 W continuous
Output Option 1	28 V / 25 A
Output Option 2	50 V / 14 A
Efficiency	>95% at half load; 95% @ 100% load
Isolation (28V model)	1500 VDC
Isolation (50V model)	2250 VDC
Switching Frequency	280 kHz (fixed)
Operating Temperature	-40 to +85°C
Baseplate Temperature	Up to 100°C
Mounting Height	0.5 inches (12.7 mm)
Form Factor	1/2 Brick (standard)
Trim Range	50%-118%
Material	UL94 V0
RoHS 6 Compliance	Yes
Part Numbers	ADH700-48S28-6L, ADH700-48S28-6LS, ADH700-48S50-6L, ADH700-48S50-6LS
